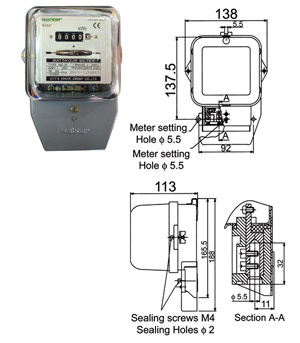

กิโลวัตต์อาวร์มิเตอร์ (Kilowatt Hour Meter)




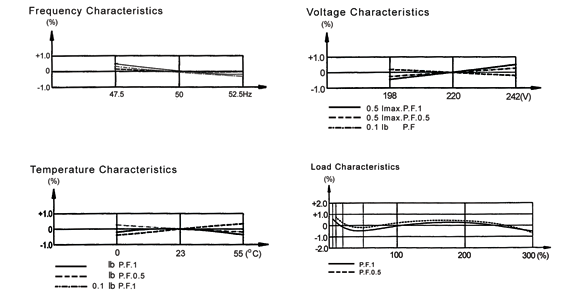

SPECIFICATIONS :
• Accuracy Class: 2
• Relation humidity: 80% at °C
• Rated temperature: -10°C...50°C
• Current frequency: 45..50..55 Hz
• Standard : GB/T 15283
• Precaution: cannot be used in the air
   containing corrosive gases

กิโลวัตต์อาวร์มิเตอร์ 3P 4W
รุ่น
(Model)
รายละเอียด

DT 8
3P 4W  220/380V  X/5A

DT 8
3P 4W  220/380V  10(20)A

DT 8
3P 4W  220/380V  15(30)A

DT 8
3P 4W  220/380V  30(60)A

DT 8
3P 4W  220/380V  50(100)A

กิโลวัตต์อาวร์มิเตอร์ 1P 2W
รุ่น
(Model)
รายละเอียด

DD 282
1P 2W 220V 50Hz 5(10)A

DD 282
1P 2W 220V 50Hz 10(20)A

Salser พิมพ์ ส่งเมล์


   พาเนลมิืเตอร์แบบอานาล็อก 96x96 mm (Analog Panel Meter)
   Moving Iron Type Meter SD-96 Series
   TECHNICAL DATA
    • Accuracy Class: 1.5
    • IEC regulation: IEC51, IEC 144
    • DIN standard
       - Case dimension: DIN 43700
       - Scale Marking : DIN 43802
       - Magnetic influence: DIN 43780
    • Housing: Self-Extinguishing PolymerABS, According to UL94
    • Front frame: RAL 7037, GB 7676-1998
   OPERATING CONDITIONS:
    • Ambient Temperature Limits: Reference temperature +20°C
    • Rated temperature: 10..30°C
    • Thresholds: -25°C/40°C
    • Current frequency: 45..50..55Hz
    • Insulation test: 2 KV
    • Protection grade: IP54, IP55
    • Angular scale: 90° degree
    • Input Voltage (Over Loads)
       - Voltage: x 1.5UnPermanently
  : x 2.0UnDuring 5 sce.
       - Current: x 1.2InPermanently
  : x 5.0InDuring 30 sce.
  : x 10InDuring 5 sce.
  : x 40InDuring 1sce.
    • Power Consumption
       - Voltage from 1 to 4 VA: 1.8VA for 250V
  : 303VA for 300V
      - Current from 0.3 to 1.5 VA: 0.7VA for 1A
  : 1.2VA for 5A


โวลต์มิเตอร์ (Volt Meter)
รุ่น
(Model)
Connection
Measuring
Rang

SD-96V
Direct connect
0-300V,0-500V





แอมป์มิเตอร์ (Amp Meter)
รุ่น
(Model)
Connection
    Measuring
        Rang
SD-96A
Direct connect
30A,50A,60A,100A





SD-96A
30/5A, 300/5A, 1500/5A,
SD-96A
 50/5A, 400/5A, 1600/5A,
SD-96A
 60/5A, 500/5A, 2000/5A,
SD-96A
connect with CT X/54
100/5A, 600/5A, 2500/5A,
SD-96A
(ต่อผ่าน CT)
150/5A, 800/5A, 3000/5A,
SD-96A
 200/5A, 1000/5A, 4000/5A,
SD-96A
 250/5A, 1200/5A, 5000/5A,

Measuring
Power
Consumption + 20%
300V
1.2 VA
500V
2 VA
X/5A for (CT)
< 1.2 VA

   พาเนลมิืเตอร์แบบอานาล็อก 96x96 mm (Analog Panel Meter)
   Moving Iron SD-96 Series
   OPERATING CONDITIONS :
    • Current frequency: 45..50..55 Hz
    • Ambient Temp Limits: 10..23..30°C
    • Thresholds: -25°C/40°C
    • Relative air humidity: 25..85%
    • Mounting Angle: 90 °degree
    • Input Voltage (Over Loads)
       - Voltage: x 1.5UnPermanently
  : x 2.0UnDuring 5 sce.
       - Current: x 1.2InPermanently
  : x 5.0InDuring 30 sce.
  : x 10InDuring 5 sce
  : x 40InDuring 1sce.
   STANDARDS :
    • IEC regulation: IEC51, IEC473
    • DIN standards
       - Case dimension: DIN 43700
       - Scale Marking: DIN 43802
       - Magnetic influence: DIN 43780
    • Housing: Self-Extinguishing PolymerABS, According to UL94
    • Front frame: RAL 7037
    • GB 7676-1998
   SD-96KW SPECIFICATIONS :
    • Accuracy CLass: 1.5
    • Input Voltage: 220/380Vac, 3P4W
    • Insulation test: 2KV, 1 min
    • Protection Degree: IP 50
    • Case Material: Thermoplastic/glass


กิโลวัตต์มิเตอร์ (Active Power Meter)
รุ่น
(Model)
Measuring
Range

SD-96KW
0-20 KW (CT30/5 A)
0-200 KW (CT300/5 A)
0-1MW (CT500/5 A)

SD-96KW
0-30 KW (CT30/5 A)
0-250 KW (CT400/5 A)
0-1.2MW (CT2000/5 A)

SD-96KW
0-40 KW (CT30/5 A)
0-300 KW (CT500/5 A)
0-1.6MW (CT2500/5 A)

SD-96KW
0-60 KW (CT30/5 A)
0-400 KW (CT600/5 A)
0-2MW (CT3000/5 A)

SD-96KW
0-100 KW (CT30/5 A)
0-500 KW (CT800/5 A)
0-2.5MW (CT4000/5 A)

SD-96KW
0-120 KW (CT30/5 A)
0-600 KW (CT1000/5 A)
0-3MW (CT500/5 A)

SD-96KW
0-160 KW (CT250/5 A)
0-800 KW (CT1200/5 A)


   พาเนลมิืเตอร์หน้าปัด 240 องศา 96x96 mm (240° Circular Scale Panel Meter)
   Moving Coil Type SC-96 Series
   STANDARDS :
    • GB 7676-1998
    • IEC regulation : IEC51, IEC473
    • DIN standard
       - Case dimension : DIN 43700
       - Scale Marking : DIN 43802
       - Magnetic influence : DIN 43780
    • Housing : Self-Extinguishing PolymerABS According to UL94
    • Front frame : RAL 7037
   OPERATING CONDITIONS :
    • Current frequency: 45..50..60 Hz
    • Ambient Temp Limits: 10..23..30°C
    • Thresholds: -25°C/40°C
    • Relative air humidity: 25..85%
    • Mounting Angle: 90 °degree
    • Input Voltage : 600Vac
       - Voltage: x 1.5UnPermanently
  : x 2.0UnDuring 5 sce.
       - Current: x 1.2InPermanently
  : x 5.0InDuring 30 sce.
  : x 10InDuring 5 sce
  : x 40InDuring 1sce.

 SC-96V, SC-96A SPECIFICATIONS :
    • Accuracy CLass: 1.5
    • output Voltage: RMS
    • Insulation test: 2KV, 1 min
    • Protection Degree: IP 50
    • Case Material: Thermoplastic/glass
    • Power Consumption
       - Voltage from 1 to 4 VA: 1.8VA for 250V
  : 3.3VA for 300V
       - Current from 0.3 to 1.5 VA: 0.7VA for 1A
  : 1.2VA for 5ACase



โวลต์มิเตอร์ (Volt Meter)
รุ่น
(Model)
Measuring
Range

SC-96V
0-300V, 0-500V




แอมป์มิเตอร์ (Amp Meter)

รุ่น
(Model)
Connection
Measuring
Rang

SC-96A
Connect with CT X/5A
30/5A, 50/5A, 60/5A,

SC-96A
Connect with CT X/5A
100/5A, 150/5A, 200/5A,

SC-96A
Connect with CT X/5A
300/5A, 400/5A, 500/5A,

SC-96A
Connect with CT X/5A
600/5A, 800/5A, 1000/5A

SC-96A
Connect with CT X/5A
1500/5A, 2000/5A, 25000/5A,

SC-96A
Connect with CT X/5A
3000/5A 4000/5A, 5000/5A


SC-96P SPECIFICATIONS :
• Accuracy Class: 1.5• Power Consumption: 0.5VA current circuit(X/5A)
• Insulation test: 2KV, 1min: 3VA voltage circuit(380V)
• Protection Degree: IP 50• Case Material: Thermoplastic/glass
• Input Current: 5A


เพาเวอร์ แฟคเตอร์ (Power Factor Meter)

รุ่น
(Model)
Input
Voltage
Active
Measuring
Range

SC-96P
220V
1P
Cap 0.5...1...0.5 IND
SC-96P
380V
3P,4W
Cap 0.5...1...0.5 IND

   พาเนลมิืเตอร์หน้าปัด 240 องศา 96x96 mm (240° Circular Scale Panel Meter)
   Moving Coil Type SC-96 Series







SC-96F SPECIFICATIONS :
• Accuracy Class: 1.5• Power Consumption: 4VA
• Insulation test: 2KV,1min• Case Material: Thermoplastic/glass
• Protection Degree: IP 50

มิเตอร์วัดความถี่ (Frequency Meter)
รุ่น
(Model)
Type
Input
Voltage
Measuring
Range

SC-96F
แบบเข็ม
220V, 380V
45...65 Hz

 SC-96KW SPECIFICATIONS :
• Accuracy Class: 1.5• Power Consumption: 0.5VA current circuit(X/5A)
• Insulation test: 2KV,1min• Case Material: 3VA voltage curcuit(380V)
• Protection Degree: IP 50 : Thermoplastic/glass


กิโลวัตต์มิเตอร์ (Active Power Meter)

รุ่น
(Model)
Measuring
Range

SD-96KW
0-20 KW (CT30/5 A)
0-200 KW (CT300/5 A)
0-1MW (CT500/5 A)

SD-96KW
0-30 KW (CT50/5 A)
0-250 KW (CT400/5 A)
0-1.2MW (CT2000/5 A)

SD-96KW
0-40 KW (CT60/5 A)
0-300 KW (CT500/5 A)
0-1.6MW (CT2500/5 A)

SD-96KW
0-60 KW (CT100/5 A)
0-400 KW (CT600/5 A)
0-2MW (CT3000/5 A)

SD-96KW
0-100 KW (CT150/5 A)
0-500 KW (CT800/5 A)
0-2.5MW (CT4000/5 A)

SD-96KW
0-120 KW (CT200/5 A)
0-600 KW (CT1000/5 A)
0-3MW (CT5000/5 A)

SD-96KW
0-160 KW (CT250/5 A)
0-800 KW (CT1200/5 A)


   พาเนลมิืเตอร์แบบดิจิตอล 96x96 mm(Digital Panel Meter)
   Digital Panel Meter Size 96x96 mm.
   TECHNICAL DATA
    • Accuracy class : 1.5
    • IEC regulation : IEC51, IEC144
    • DIN standard
       - Case dimension : DIN 43700
       - Scale Marking : DIN 43802
       - Magnetic influence : DIN 43780
    • Housing : Self-Extinguishing PolymerABS According to UL94
    • Front frame : RAL 7037
   OPERATING CONDITIONS :
    • Ambient Temperature Limits: Reference temperature
    20°C + 2°C
    • Rated temperature: 10..30°C
    • Thresholds: 0°C...40°C
    • Air relative humidity: 45..85% R.H.
    • Frequency of the supply AC voltage: 40..50...200Hz
    • Insulation test: 2KV
    • Protection test  : IP54, IP55
    • Power Consumption : 4.5VA
    • Dielectric withstand voltage :1500VAC, 1 min.
    • Withstand impedance : 500VDC, 100MO
    • Over input indication  : "1" or "-1"
    • Polarity display : "-" display (only DC)
    • Display : Red LED (14.2 mmH)
    • Weight : 500 g
 CAUTIONS
   • The meter must be heating 15 min. with the power on before use.
   • Avoid using instruments in area surrounded by vibrations or shock, dust, organic
     corrosive materiasls or gas.
   • If the input single is superimposed with frequency noise, use a low pass filter in
     the input signal line.
   • Input wire should not be too long. Otherwise, please use a 2 cores shiedlded cable.



ดิจิตอล โวลต์มิเตอร์ (Digital Voltmeter)
รุ่น
(Model)
Type
Range
Resolution
Connection
Measuring
accuracy
Max.
Input

DP-96V
AC
0-500VAC
1VAC
Direct Input
+0.3%
1000V(Peak)

DP-96V
DC
0-20VDC
10mVDC
Direct Input
+0.5%
500VDC

DP-96V
DC
0-100VDC
100mVDC
Direct Input
+0.5%
750VDC

DP-96V
DC
0-200VDC
10mVDC
Direct Input
+0.5%
750VDC

DP-96V
DC
200-1000VDC
1VDC
Direct Input
+0.5%
1000VDC


ดิจิตอล แอมป์มิเตอร์ (Digital Ammeter)



รุ่น
(Model)
Type
Range
Resolution
Connection
Measuring
accuracy
Max.
Input

DP-96A
AC
30A
10mA
CT 30/5A
+0.5%
x 1.2 In
DP-96A
AC
50A, 60A, 100A,
150A, 200A, 250A,
300A, 400A,
100mA
CT X/5A
+0.5%
x 1.2 In
DP-96A
AC
500A, 600A, 800A,
1000A, 1500A, 1600A,
2000A, 2500A,
1A
CT X/5A
+0.5%
x 1.2 In
DP-96A
DC
200mA, 2A, 20A
1mA,
10mA,
100mA
Direct Input
+0.5%
1A,
5A,
30A
DP-96A
DC
30A, 50A, 100A,
150A, 200A
100mA
(X)A:75mV
+0.5%
x 1.5
DP-96A
DC
300A, 500A, 1000A,
1500A, 2000A
1A
(X)A:75mV
+0.5%
x 1.5

   พาเนลมิืเตอร์แบบดิจิตอล 96x96 mm(Digital Panel Meter)
   TECHNICAL DATA
    • Accuracy class : 1.5
    • IEC regulation : IEC51, IEC144
    • DIN standard
       - Case dimension : DIN 43700
       - Scale Marking : DIN 43802
       - Magnetic influence : DIN 43780
    • Housing : Self-Extinguishing PolymerABS According to UL94
    • Front frame : RAL 7037
   OPERATING CONDITIONS :
    • Ambient Temperature Limits: Reference temperature
    20°C + 2°C
    • Rated temperature: 10..30°C
    • Thresholds: 0°C...40°C
    • Air relative humidity: 45..85% R.H.
    • Max.Display: 1999
    • Insulation test: 2KV
    • Protection test  : IP54, IP55
    • Power Consumption : <3VA
    • Dielectric withstand voltage :1500VAC, 1 min.
    • Withstand impedance : 500VDC, 100MO
    • Display : Red LED (14.2 mmH)
    • Weight : 350 g



มิเตอร์วัีดความถี่ (Digital Frequency Meter)
รุ่น
(Model)
Range
Input
impedance
Measuring
Voltage Range
Max.
Input

DP3-HZ20
0-100Hz
2MW
90V-500V
800V

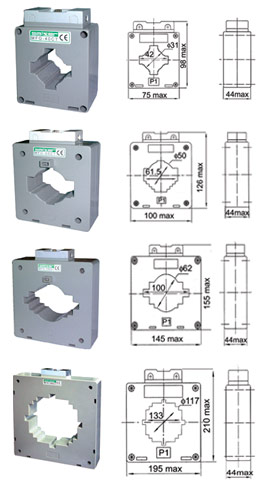

  หหม้อแปลงกระแสไฟฟ้า CT (Current Transformers)

SPECIFICATIONS:
  • Accuracy Class
: 1.0
    • Rated Voltage : 600Vac
    • Rated Temperature : 10..45C

  • Case
: ABS Plastic Case
MFO-Series
รุ่น
(Model)
Window
Related
Load
Rated
Current
MFO-40
41x10 mm.
2.5VA

30/5,50/5,60/5,
100/5, 150/5A
200/5A, 250/5A,
300/5A, 400/5A
MFO-40
60x20 mm.
10VA

400/5A,500/5A,
600/5A
800/5A
MFO-100
100x10 mm.
15VA

1000/5A,
1500/5A,
2000/5A,
2500/5A,
3000/5A
MFO-130
130x10 mm.
15VA

2000/5A,
2500/5A,
3000/5A,
4000/5A,
5000/5A

   พาเนลมิืเตอร์ 80x80 mm (Analog Panel Meter)
   Moving Iron Type SD-80 Series
  SPECIFICATIONS :
     • Accuracy Class: 2.5
     • Rated Voltage: 600Vac
     • Rated Temperature: 10..45C
    • Insulation Test: 2KV, 50Hz, 1min



แอมป์มิเตอร์ (Ammeter)
รุ่น
(Model)
Connection
Measuring
Range
SD-80A
Direct Connection
(ต่อตรง)
5A, 10A, 15A, 20A,
30A, 40A, 50A, 60A,

SD-80A
For CT x/54
(ผ่าน CT)
30/5A, 50/50A, 60/5A, 100/5A, 150/5A, 200/5A, 250/5A, 300/5A, 400/5A, 500/5A

โวลต์มิเตอร์ (Voltmeter)
รุ่น
(Model)
Voltage Range
SD-80V
0-300V, 0-500V


   กิโลวัตต์อาวร์มิเตอร์ (Single Phase Kilowatt Hour Meter)

 SPECIFICATIONS :
    • Accuracy Class: 2
    • Standard: IEC521
    • Voltage rating: 220 Vac
    • Frequency: 50 Hz
    • Starting Load: 0.5% of basic current
    • Base: Steel With Silver Powder
   Painting
    • Cover: Transparent Hard Glass
    • Lower bearing: Magnetic


 กิโลวัตต์อาวร์มิเตอร์ 1P 2W

รุ่น
(Model)
Detail

MZ-37
1P 2W   220V   50Hz   5(15)A

MZ-37
1P 2W   220V   50Hz   10(30)A

MZ-37
1P 2W   220V   50Hz   15(45)A



Lumel พิมพ์ ส่งเมล์


พาเนลมิืเตอร์แบบอานาล็อก 96x96 mm (Analog Panel Meter)


OPERATING CONDITIONS :
 • Current frequency: 45..50..55 Hz
 • Ambient Temp Limits: 5..23..50°C
 • Relative air humidity: 25..85 %
 • Error due to ambient Temp effect: Class/10°C
STANDARDS :
 • Polish standards: PN-84/E-06501
 • DIN standards: DIN 43780
 • IEC regulations: IEC 51/1-9/BS 89
 EA-19 SPECIFICATIONS :
  • Accruacy Class: 1.5• Protection Degree: IP 50
  • Output Value: RMS • Weight: 0.25Kg.
  • Insulation test: 3 KV• Case Material: Thermoplastic/glass



โวลท์มิเตอร์ (Volt Meter)
รุ่น
(Model)
Measuring
Range
Power
Consumption
EA-19
300/600 V
2.4 VA
EA-19
500/1000 V
2.9 VA



แอมป์มิเตอร์ รุ่นต่อตรง (Direct Ammeter)


รุ่น
(Model)
Measuring
Range
Power
Consumption
EA-19
0.25 A
0.6 VA
EA-19
0-40 A
0.85 VA
EA-19
0-60 A
1.20 VA
EA-19
0-100 A
1.90 VA



แอมป์มิเตอร์ รุ่นใช้ CT (Ammeter For CT X/5A)

รุ่น
(Model)
Measuring
Range

EA-19
0-30/5 A
0-300/5 A
0-1500/5 A
EA-19
0-50/5 A
0-400/5 A
0-1600/5 A
EA-19
0-60/5 A
0-500/5 A
0-2000/5 A
EA-19
0-100/5 A
0-600/5 A
0-2500/5 A
EA-19
0-150/5 A
0-800/5 A
0-3000/5 A
EA-19
0-200/5 A
0-1000/5 A
0-4000/5 A
EA-19
0-250/5 A
0-1200/5 A
0-5000/5 A


CA-39 SPECIFICATIONS :
• Accuracy Class: 0.5• Protection Deg: IP 50
• Insulation test: 2 KV• Weight: 0.35 Kg






มิเตอร์วัดความถี่ (Frequency Meter)

รุ่น
(Model)
Measuring
Range
Input
Voltage

CA-39
45..55 Hz
220 V

CA-39
45..65 Hz
220 V

CA-39
45..55 Hz
380 V


พาเนลมิืเตอร์แบบอานาล็อก 96x96 mm (Analog Panel Meter)

OPERATING CONDITIONS :
 • Current frequency: 45..50..65 Hz
 • Input Voltage: Un+15%
 • Ambient Temp Limits: 5..23..40°C
 • Relative air humidity: 25..85 %
 • Error due to ambient Temp effect: Class/10°C
 • External magnetic field: < 400 A/m
SAFETY REQUIREMENTS : acc.IEC 1010-1
 • Installation category: III
 • Level of pollution: 2
 • Working voltage in relation to earth: 600 Vac
STANDARDS :
 • Polish standards: PN-84/E-06501
 • DIN standards: DIN 43780
 • IEC regulations: IEC 51/1-9/BS 89


 FA-39 SPECIFICATIONS :
• Accuracy Class: 1.5• Power Consumption: < 0.2VA current circuit
• Input Current: 5A• Power Consumption: < 8VA voltage circuit
• Insulation test: 3 KV• Protection Degree: IP 50
• Weight: 0.23Kg• Case Material: Thermoplastic/glass




เพาเวอร์แฟคเตอร์ (Power Factor Meter)(For C.T. X/54)
รุ่น
(Model)
Phase
Measuring
Range
Input
Voltage
FA-39
1 Phase
0.5 CAP...1...0.5 IDN
220 V
FA-39
3 Phase
0.5 CAP...1...0.5 IDN
380 V


 PA-39 SPECIFICATIONS :
• Accuracy Class: 1.5• Power Consumption: < 0.25VA current circuit
• Input Current: 5A• Power Consumption: < 3VA voltage circuit
• Insulation test: 2KV• Protection Degree: IP 50
• Weight: 0.40Kg• Case Material: Thermoplastic/glass



Kilowatt Meter 1P,220V
รุ่น
Model
Measuring Range for CT
PA-39
1KW (5/5 A), 2 KW (10/5 A), 3KW (15/5A),
4KW (20/5 A), 6KW (30/5 A)








Kilowatt Meter 3P 4W,220/380V Unbalance Load

Model
Measuring Range for CT


PA-39
0-20 KW (30/5A)
0-300 KW (500/5A)

PA-39
0-30 KW (50/5A)
0-400 KW (600/5A)

PA-39
0-40 KW (60/5A)
0-500 KW (800/5A)

PA-39
0-60 KW (100/5A)
0-600 KW (1000/5A)

PA-39
0-100 KW (150/5A)
0-1 MW (1500/5A)

PA-39
0-120 KW (200/5A)
0-1.2 MW (2000/5A)

PA-39
0-150 KW (250/5A)
0-1.6 MW (2500/5A)

PA-39
0-160 KW (250/5A)
0-2 MW (3000/5A)

PA-39
0-200 KW (300/5A)
0-2.5 MW (4000/5A)

PA-39
0-250 KW (400/5A)
0-3 MW (5000/5A)


[ ย้อนกลับ ]



รายการสินค้า
Variable Voltage Transformers
Meter&Current Transformers
Breaker,magnetic contactor
Control Switch
Fuses
Accessories
tools
Plugs & Switchs
Bus bar,wire & Cables
Lighting equipments
Bulb & Lamp Fitting
